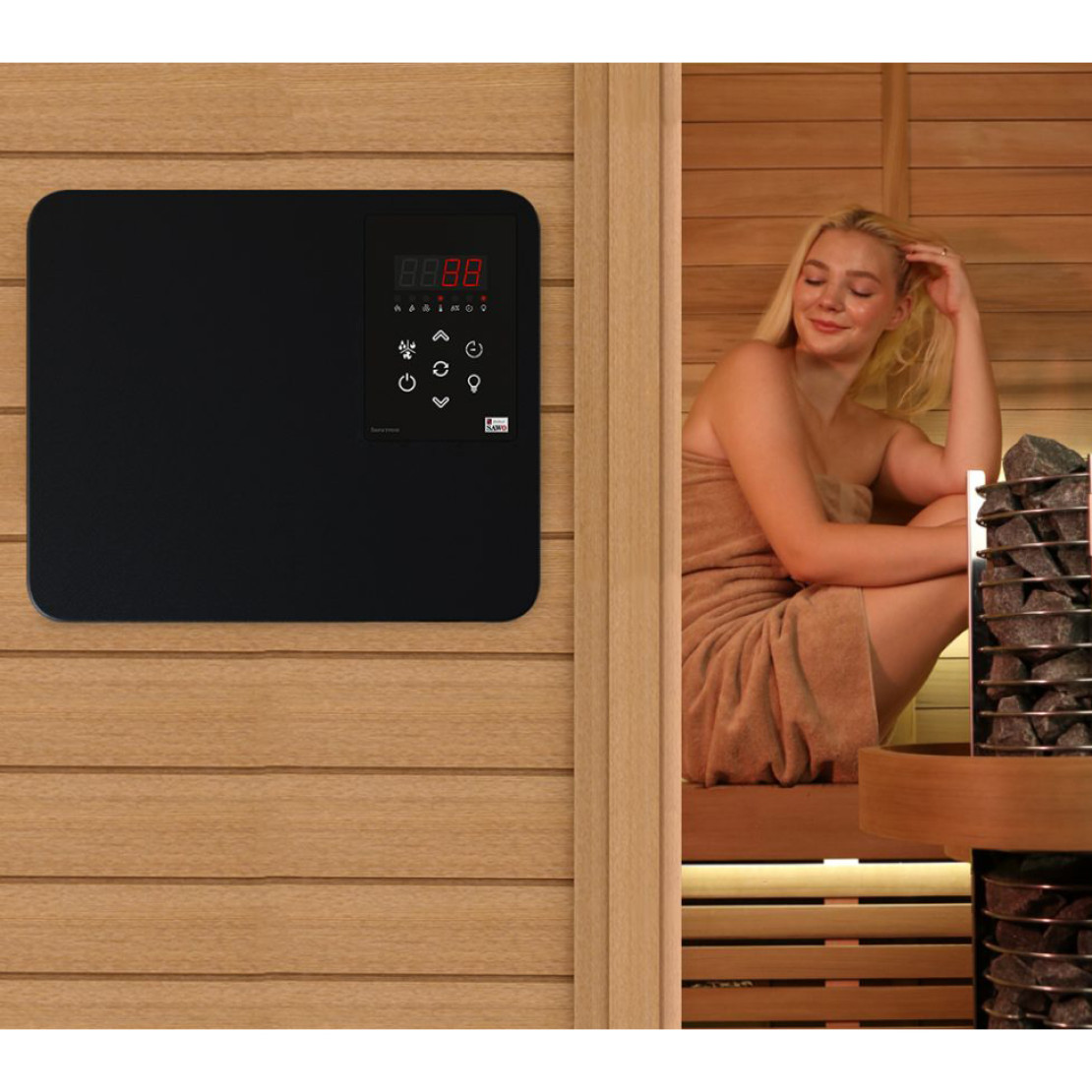

Sawo Innova Classic INC-B-V2 remote control

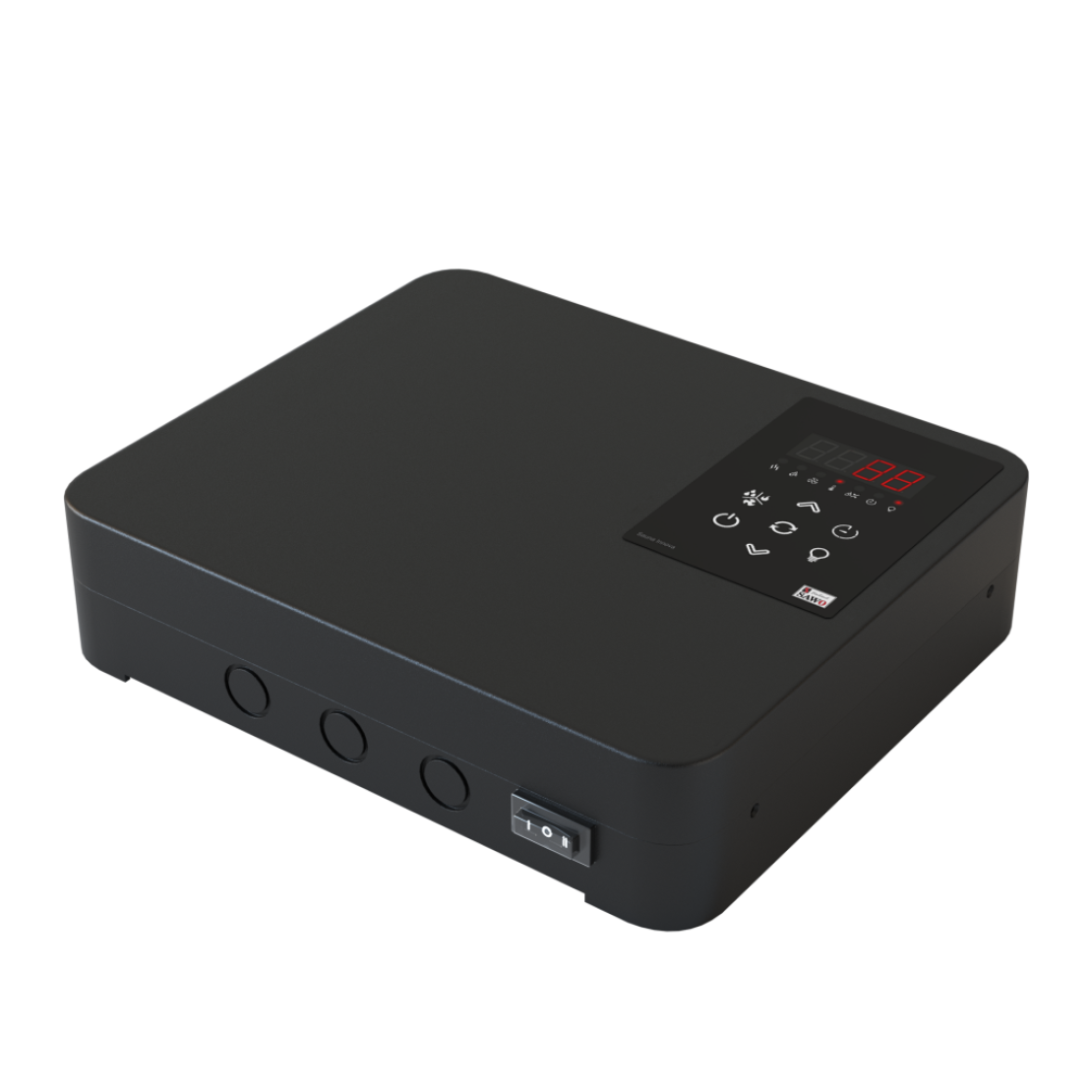

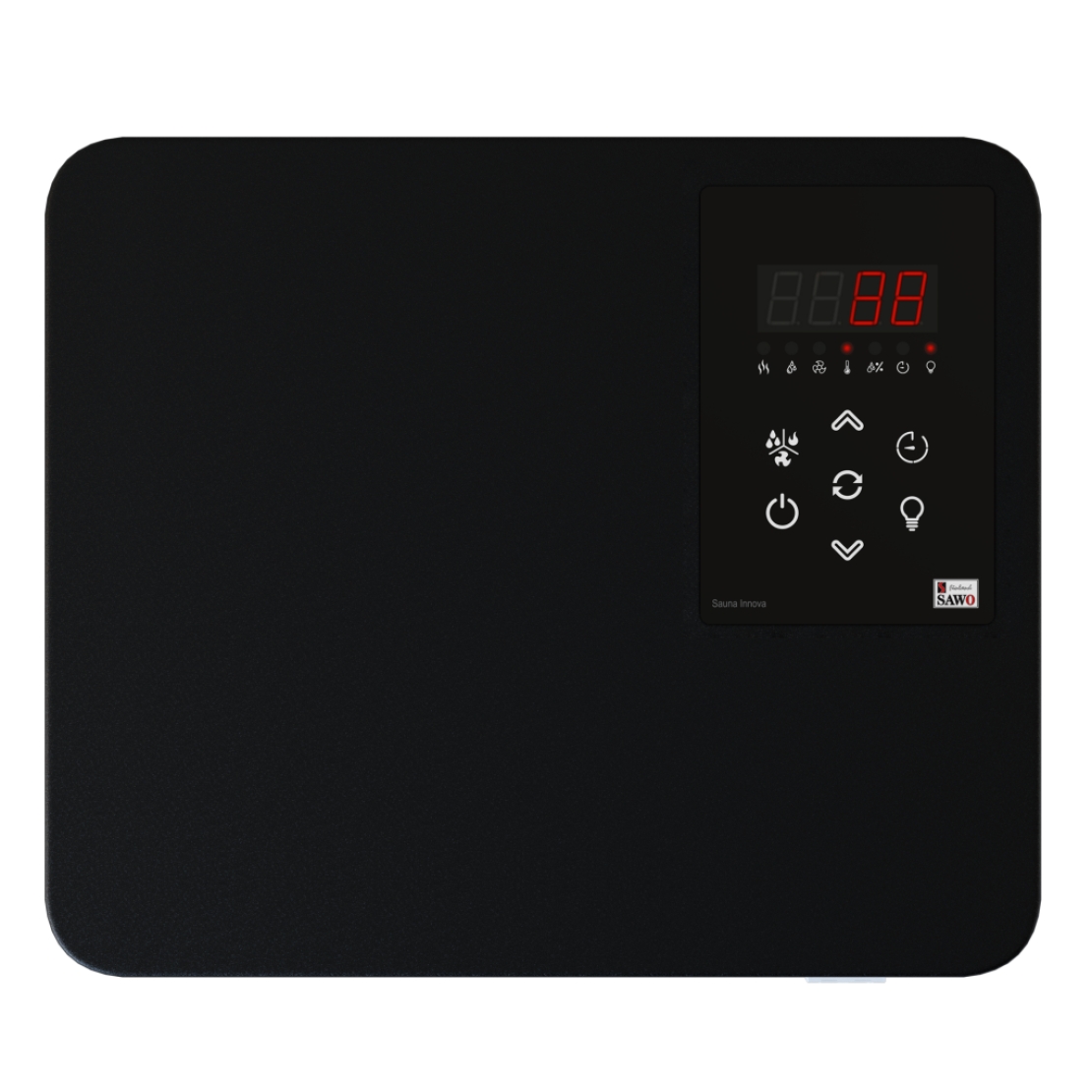

Sawo Innova 2.0 sauna control panel (built-in version)

The popular Sawo Innova 2.0 remote control is now available in a compact, built-in format that combines the control panel and power controller in one housing. This is the ideal solution for home and commercial saunas where the control is installed in a separate room.

Model features:

• Intelligent control: automatic shutdown of the heating elements when the set temperature is reached, which ensures long service life of the heating elements and energy savings.
• Upgraded housing: more space for easy and quick installation.
• Flexible connection: possibility of hidden wiring through the back of the housing.
• Wide power range: compatible with electric heaters with a power of 2.3 - 15 kW. For more powerful stoves, an additional power supply is required.

Technical specifications:

• For electric heaters: 2.3 – 15 kW
• Temperature range: 10 – 110°C
• Maximum session time: 4, 6, 12, 18, 24 hours
• Rated voltage: 400V 3N, 230V 1N
• Dimensions: 320 x 270 x 80 mm
• Weight: 2.6 kg

Equipment:

• Control panel
• Temperature sensor with wooden cover
• RJ12 cable

This remote control will become a reliable assistant in controlling the sauna, ensuring comfort and efficiency in every session.

INSTRUCTION
