Sauna stove PK-12 L anthracite

The stove for the PAL PK-12 L anthracite bath is designed and manufactured using European quality standards, as well as high-quality materials. Thanks to the removal of the door of the firebox into the pre-bathroom, it is much more convenient to throw logs into the firebox without entering the steam room itself - and, accordingly, I do not bring garbage and small chips there. The pleasant appearance makes this stove a beautiful addition to the interior of your steam room and bath. The capacity of PK-12 L stones is 40 kg, this volume is enough to heat a steam room with a volume of up to 12 cubic meters. The stones heat up, and even after the fire is extinguished, they can heat the room for a long time.

Features of the PK-12 L stove :

• The reinforced rear wall is one of the advantages of the ovens of this series, engineers turned the disadvantage of other ovens into a competitive advantage
• It is recommended to use for home and commercial baths
• Deep container for stones
• The Coanda air exchange system provides fast heating and economical consumption of firewood

A possible option is to lengthen the neck (fuel channel) from 500 to 1000 mm.

INSTRUCTIONS for the PAL RK-12 L oven

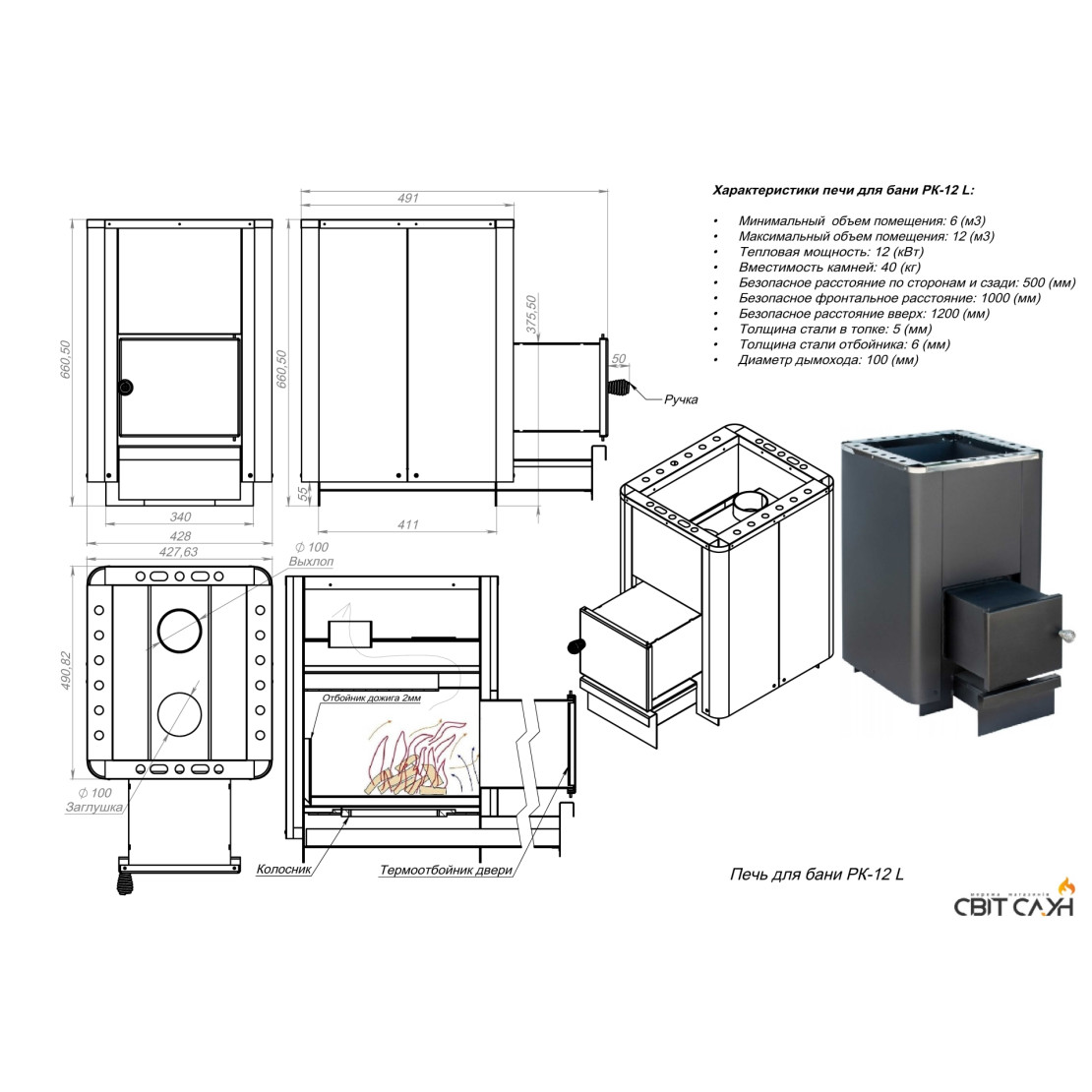

Characteristics of the PK-12 L bath stove :

• Minimum room volume: 6 (m3)
• Maximum room volume: 12 (m3)
• Thermal power: 12 (kW)
• Stone capacity: 40 (kg)
• Safety distance on the sides and behind: 500 (mm)
• Safe frontal distance: 1000 (mm)
• Safety distance up: 1200 (mm)
• Steel thickness in the furnace: 5 (mm)
• The thickness of the steel of the bumper: 6 (mm)
• Chimney diameter: 100 (mm)
• Dimensions: 428x708x661 (mm)
